Learned Point Cloud Geometry Compression

This project is no longer maintained, please use the updated version: https://github.com/NJUVISION/PCGCv2 and our latest work: https://github.com/NJUVISION/SparsePCGC

Jianqiang Wang, Hao Zhu, Haojie Liu, Zhan Ma. [arXiv]

introduction (a) framework (b) An illustrative overview in (a) and detailed diagram in (b) for point cloud geometry compression consisting of a pre-processing for PCG voxelization, scaling & partition, a compression network for compact PCG representation, and metadata signaling, and post-processing for PCG reconstruction and rendering. “Q” stands for “Quantization”, “AE” and “AD” are Arithmetic Encoder and Decoder respectively. “Conv” denotes the convolution layer with the number of the output, channels, and kernel size.

Requirements

ubuntu16.04
python3
tensorflow-gpu=1.13.1
Pretrained models: https://box.nju.edu.cn/f/19f915f4be0643fc8862/
ShapeNet Dataset: http://yun.nju.edu.cn/f/6d39b9cba0/
Test data: https://box.nju.edu.cn/f/5ab2aa4dfd9941f5aaae/

Usage

Encoding

python test.py compress "testdata/8iVFB/longdress_vox10_1300.ply" \
        --ckpt_dir="checkpoints/hyper/a6b3/"

Decoding

python test.py decompress "compressed/longdress_vox10_1300" \
        --ckpt_dir="checkpoints/hyper/a6b3/"

Other default options: –scale=1, –cube_size=64, –rho=1.0, –mode=’hyper’, –modelname=’models.model_voxception’

Examples

Please refer to demo.ipynb for each step.

Evaluation

 python eval.py --input "testdata/8iVFB/longdress_vox10_1300.ply" \
                --rootdir="results/hyper/" \
                --cfgdir="results/hyper/8iVFB_vox10.ini" \
                --res=1024

Different parameters are required for different dataset, for example:

 python eval.py --input "testdata/Sparse/House_without_roof_00057_vox12.ply" \
                --rootdir "results/hyper/" \
                --cfgdir "results/hyper/House_without_roof_00057_vox12.ini" \
                --res=4096

The detailed cfgs and results can be downloaded in https://box.nju.edu.cn/f/b78aeedc0453442aafe5/ And several examples of decoded point clouds can be download in https://box.nju.edu.cn/d/f6a6f8ae61c94cea9248/

Training

Generating training dataset

sampling points from meshes, here we use pyntcloud (pip install pyntcloud)

cd dataprocess
python mesh2pc.py

The output point clouds can be download in http://yun.nju.edu.cn/d/227493a5bd/

python generate_dataset.py

the output training dataset can be download in http://yun.nju.edu.cn/d/604927e275/

Training

python train_hyper.py --alpha=0.75 \
        --prefix='hyper_' --batch_size=8 --init_ckpt_dir='checkpoints/hyper/a0.75b3' --reset_optimizer=1

python train_factorized.py --alpha=2  \
        --prefix='voxception_' --batch_size=8 --init_ckpt_dir='./checkpoints/factorized/a2b3' --reset_optimizer=1

Comparison

Objective Comparison

results.ipynb

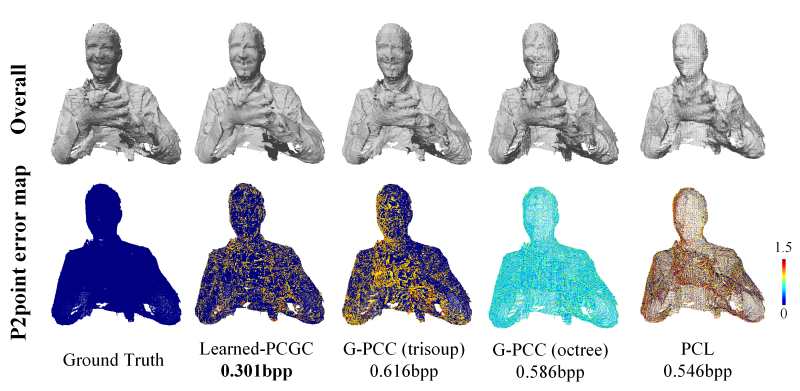

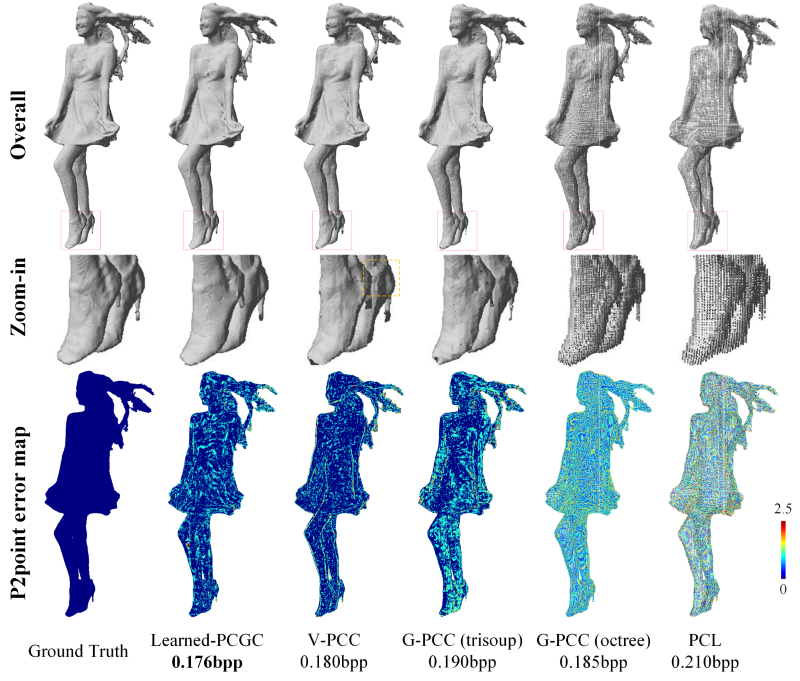

Qualitative Evaluation

Update

2021.01.01 the paper was published on TCSVT. (Wang, J., Zhu, H., Liu, H., & Ma, Z. (2021). Lossy Point Cloud Geometry Compression via End-to-End Learning. IEEE Transactions on Circuits and Systems for Video Technology, 31, 4909-4923.)
2020.10.03 open source.
2020.02.20 smbmit to TCSVT.
2019.11.14 submit to AVS PCC (continue to study in EE).
2019.10.09 submit to TIP. (rejected)
2019.04.29 submit to BMVC-2019. (rejected)

Issues

Error on GPU: sometimes the point clouds may fail to decode correctly due to the randomness on GPU. You can test on CPU by setting os.environ[‘CUDA_VISIBLE_DEVICES’]=”” in “evel.py”. Or encode and decode at the same time, see “compress_hyper” in “transform.py”.

Authors

These files are provided by Nanjing University Vision Lab. Thanks for the help from SJTU Cooperative Medianet Innovation Center. Please contact us (wangjq@smail.nju.edu.cn) if you have any questions.
